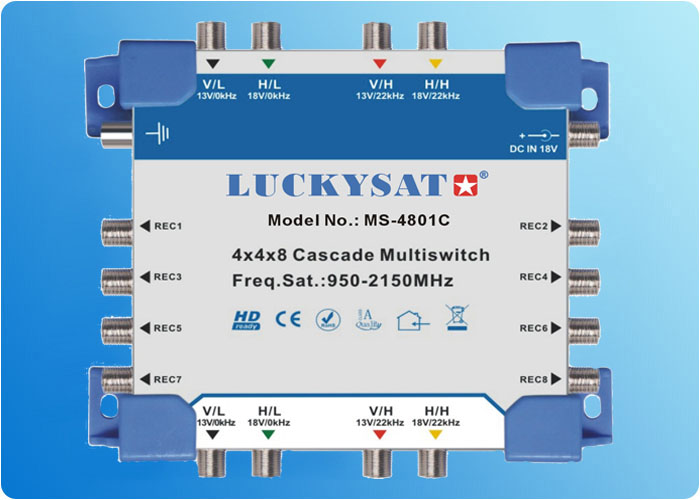

Model No.:
MS-4801C |
Product Name: Cascade Multiswitch 4x8 |
| Specifications: | |||||
| Model | MS-4801C | ||||
| Frequency | Satellite: | (MHz) | 950-2150 | ||
| Terrestrial: | (MHz) | 47-862 | |||
| Inputs (F Connectors) | 4 Sat.+1 Terr.+ Power In | ||||
| Outputs (F Connectors) | 5 Trunk Out + 8 Taps | ||||
| Insertion Loss | Trunk Sat. |
|
(dB) | 3 | |
| Trunk Terr. | (dB) | 5 | |||
| Tap Sat. | (dB) | 2 | |||
| Gain | Tap Terr. | (dB) | 9 | ||
| Isolation | Trunk-Trunk | (dB) | 30 | ||
| Cross Polar | (dB) | 28 | |||
| Tap-Tap(Sat) | (dB) | 30 | |||
| Tap-Tap(Terr.) | (dB) | 25 | |||
| Rejection | (dB) | 25 | |||
| Return Loss | Trunk in/out | (dB) | 11 | ||
| Tap | (dB) | 8 | |||
| Output Level | Sat.(IMA3-35dB)EN50083-3 | (dB) | 100 | ||
| Terr.(IMA3-60dB)EN50083-5 | (dB) | 90 | |||
| Switching Voltage | (V) | 15±1V | |||
| LNB Power Supply Max. | (A) | 1.2A | |||
| Power Supply | (Vac/Hz) | External Power Adaptor110-240/50~60Hz | |||
| Switching Commands | 13V,18V,13V/22kHz,18V/22kHz | ||||
| Dimension | (mm) | 156x147x41 | |||
| Weight | (kg) | 0.52 | |||
