Smart Digital/dCSS Multiswitch
Model No.:  |
Product Name: Smart Digital/dCSS Multiswitch for Quattro LNB |
Specification
1: Saving/Less Cables from Multiswitch output to STB.
2: Be easier to installation, don‘t need select the output polarity status, STB will read and select all of them through software inside automatically.
3: Saving product cost, dCSS/Digital multiswitch will have lower cost than traditional multiswitch basing on the same user numbers.
4: Being more flexible, can be cascaded from 16 users to 128 users or more. 5: AGC Gain for dCSS, Terrestrial Gain output will be adjusted.
6: Saving Installation cost, decreasing the installer qualification level. 7: Will be more popular for DIY installation.
8: Smart framework design, keeping room tidy and logic, saving more installation space.
9: STB must support EN50494/EN50607 protocol

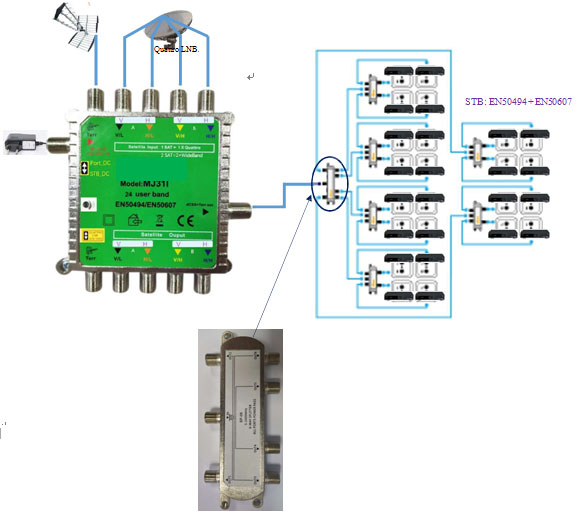

Example 1:
1 Terrestrial + 1 Satellite : 1 (dCSS Multiswitch) × 24 UB
MODE:
1.Power option: Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable

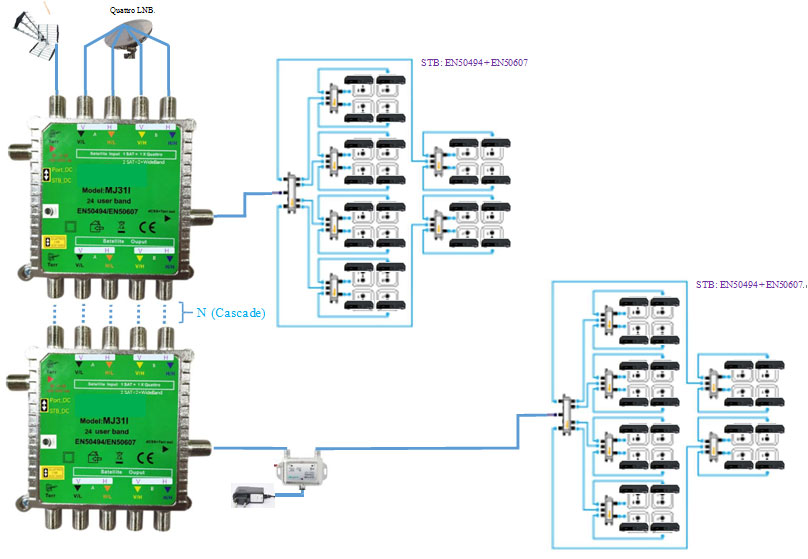

Example 2:
1 Terrestrial + 1 Satellite : N (dCSS Multiswitch) × 24 UB
MODE:
1.Power option: Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable

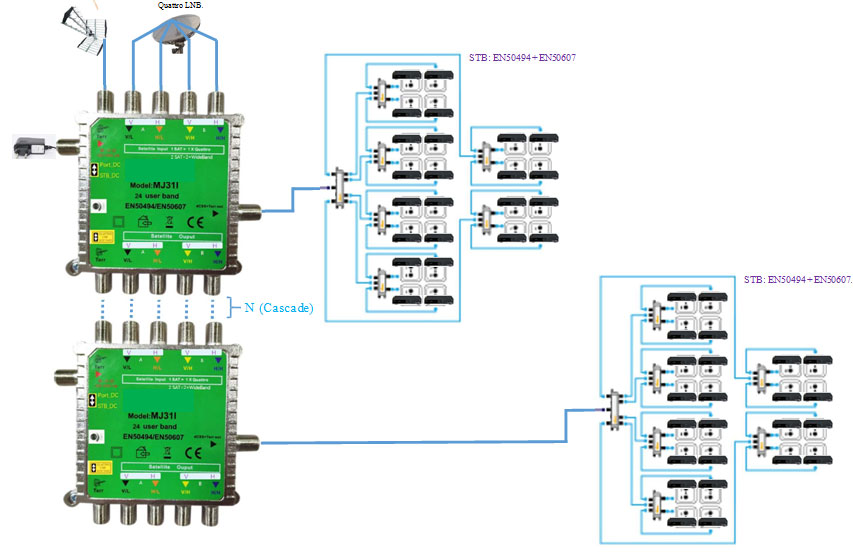

Example 3:
1 Terrestrial + 1 Satellite : N (dCSS Multiswitch) × 24 UB
MODE:
1.Power option: STB Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable

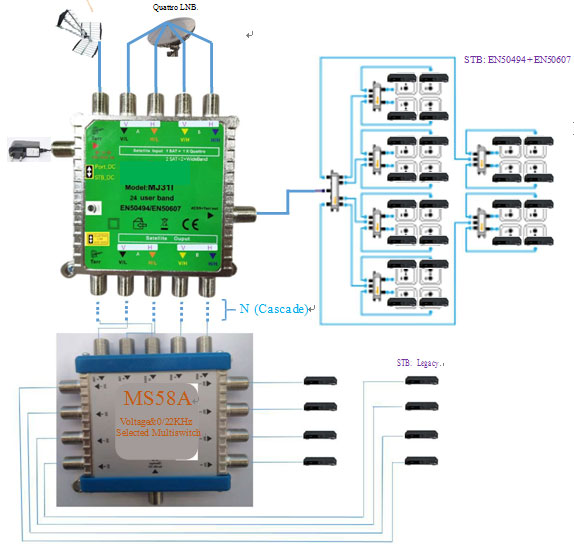

Example 4:
1 Terrestrial + 1 Satellite : 1 (dCSS Multiswitch) × 24 UB
+ 1 (5*8Multiswitch) × 8Legacy
MODE:
1.Power option: Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable
1: Saving/Less Cables from Multiswitch output to STB.
2: Be easier to installation, don‘t need select the output polarity status, STB will read and select all of them through software inside automatically.
3: Saving product cost, dCSS/Digital multiswitch will have lower cost than traditional multiswitch basing on the same user numbers.
4: Being more flexible, can be cascaded from 16 users to 128 users or more. 5: AGC Gain for dCSS, Terrestrial Gain output will be adjusted.
6: Saving Installation cost, decreasing the installer qualification level. 7: Will be more popular for DIY installation.
8: Smart framework design, keeping room tidy and logic, saving more installation space.
9: STB must support EN50494/EN50607 protocol
Example 1:
1 Terrestrial + 1 Satellite : 1 (dCSS Multiswitch) × 24 UB
MODE:
1.Power option: Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable
Example 2:
1 Terrestrial + 1 Satellite : N (dCSS Multiswitch) × 24 UB
MODE:
1.Power option: Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable
Example 3:
1 Terrestrial + 1 Satellite : N (dCSS Multiswitch) × 24 UB
MODE:
1.Power option: STB Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable
Example 4:
1 Terrestrial + 1 Satellite : 1 (dCSS Multiswitch) × 24 UB
+ 1 (5*8Multiswitch) × 8Legacy
MODE:
1.Power option: Port DC IN
2.LNB option: One satellite = 1 × Quattro LNB
3.Terrestrial : Gain adjustable
